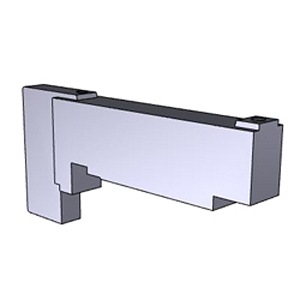

VQC2300KN-51 https://www.bdiexpress.com/medias/INDSMCVALVEX-VQC2300-5-300x300.jpg?context=bWFzdGVyfHJvb3R8MjAyMDN8aW1hZ2UvanBlZ3xhR05rTDJoak5TOHhNRFl3TmpNNU56QXpNRFF6TUM5SlRrUlRUVU5XUVV4V1JWaGZWbEZETWpNd01GODFYek13TUhnek1EQXVhbkJufGJlMTRhYzA0NmFiMjRkZjQ4ZTc4MDM4OWNmMGVlZTRmOTQwZTNiZGI2ZGM5YjM4ZmUxNjBkYjFhMzI1NTY5YzA
25666154 Hydraulic and Pneumatic Valves

SMC SMC

VQC2300KN-51

Description

VQC2300KN-51 SOLENOID VALVE ; PLUG-IN 5 PORT

Valve; 5 Port - 4 Way; 3 Position; Pneumatic; 24 VDC; Solenoid - Air Pilot - Spring/Solenoid - Air Pilot - Spring Return; 145 PSI; 14 To 122 Deg F; Metal Seal; Zinc

Part #

VQC2300KN-51

BDI #
25666154

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Details

155.6536 USD 2099-12-31 http://schema.org/NewCondition http://schema.org/InStock Your Price $ 155.65 / each BDIExpress
QTY

Inventory

Total: 4

Category
Hydraulic and Pneumatic Valves
Brand
SMC
Manufacturer Name
SMC
Minimum Buy Quantity
N/A
UNSPSC
40141605
Weight / Kilogram
0
Product Group - BDI
F02234
Valve Type
Solenoid
Port Type
Not Available
Number of Ports/Way
5 Port | 4 Way
Number of Positions
3 Position
Actuation
Solenoid - Air Pilot - Spring | Solenoid - Air Pilot - Spring Return
Voltage
24 VDC
Media
Pneumatic
Maximum Pressure
145 PSI
Operating Pressure Range
15 To 145 PSI
Operating Temperature Range
14 To 122 Deg F
Seal Type
Metal
Body Material
Zinc
Inch - Metric
Inch
Other Features
0.46 Cv Factor | High Pressure | Negative Common | With Light and Surge Voltage Suppressor | Non Locking Push Type
Category - BDI
Hydraulic and Pneumatic Valve
Harmonized Tariff Code
8481.20.00.60
Noun
Valve
Keyword String
Solenoid
Manufacturer URL
https://www.smcworld.com
Weight / LBS
0.24251
Long Description
Valve; 5 Port - 4 Way; 3 Position; Pneumatic; 24 VDC; Solenoid - Air Pilot - Spring/Solenoid - Air Pilot - Spring Return; 145 PSI; 14 To 122 Deg F; Metal Seal; Zinc
Overall Length
4.606 Inch | 117 Millimeter
Overall Width
0.61 Inch | 15.5 Millimeter
Overall Height
2.165 Inch | 55 Millimeter
