VQZ232R-5M1-C6 https://www.bdiexpress.com/medias/INDSMCVALVEX-VQZ212R-M-C6-300x300.jpg?context=bWFzdGVyfHJvb3R8MjM5MDh8aW1hZ2UvanBlZ3xhRGswTDJoaE5DOHhNRFl3TmpVeU1qRTNNVFF5TWk5SlRrUlRUVU5XUVV4V1JWaGZWbEZhTWpFeVVsOU5YME0yWHpNd01IZ3pNREF1YW5Cbnw3ZjczNTMzNzFmNzNlNmI1NmMwNzNkYWE0MDAyZWI4YmZjY2Y2NjM3NWMxNzcyMjNlYjlkYWJmODFlZmNjYjIw
25600372 Hydraulic and Pneumatic Valves

SMC SMC

VQZ232R-5M1-C6

Description

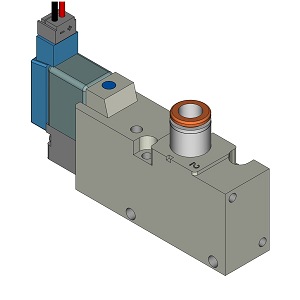

VQZ232R-5M1-C6, 3 PORT BODY PORTED SOLENOID VALVE (SMARTCATALOG)

Valve; 6 MM Tubing OD Port; 3 Port - 3 Way; 2 Position; Pneumatic; 24 VDC; Solenoid - Air Pilot/Air Pilot - Spring Return; 102 PSI; 14 To 122 Deg F; Rubber Seal; Aluminum

Part #

VQZ232R-5M1-C6

BDI #
25600372

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Details

70.83 USD 2099-12-31 http://schema.org/NewCondition http://schema.org/InStock Your Price $ 70.83 / each BDIExpress
QTY

Inventory

Total: 1

Category
Hydraulic and Pneumatic Valves
Brand
SMC
Manufacturer Name
SMC
Minimum Buy Quantity
1
Weight / gram
57
Product Group - BDI
F02234
Valve Type
Solenoid
Port Type
6 MM Tubing OD
Number of Ports/Way
3 Port | 3 Way
Number of Positions
2 Position
Actuation
Solenoid - Air Pilot | Air Pilot - Spring Return
Voltage
24 VDC
Media
Pneumatic
Maximum Pressure
102 PSI
Operating Pressure Range
22 To 102 PSI
Operating Temperature Range
14 To 122 Deg F
Seal Type
Rubber
Body Material
Aluminum
Inch - Metric
Metric
Other Features
0.39 - 0.45 Cv Factor | Body Ported | M Plug Connector With Light/Surge Voltage Suppressor | External Pilot | Non Locking Style
Category - BDI
Hydraulic and Pneumatic Valve
Harmonized Tariff Code
8481.20.00.60
Noun
Valve
Keyword String
Solenoid
Manufacturer URL
https://www.smcworld.com
Weight / LBS
0.12566
Long Description
Valve; 6 MM Tubing OD Port; 3 Port - 3 Way; 2 Position; Pneumatic; 24 VDC; Solenoid - Air Pilot/Air Pilot - Spring Return; 102 PSI; 14 To 122 Deg F; Rubber Seal; Aluminum
Overall Height
1.579 Inch | 40.1 Millimeter
Overall Width
0.591 Inch | 15 Millimeter
Overall Length
2.724 Inch | 69.2 Millimeter
