VXN22DS https://www.bdiexpress.com/medias/INDSMCVALVEX-VXN-C-BRS-300x300.jpg?context=bWFzdGVyfHJvb3R8MjQ5Mzh8aW1hZ2UvanBlZ3xhRFF3TDJnME55OHhNRFl3TlRjMk1EZzNNalEzT0M5SlRrUlRUVU5XUVV4V1JWaGZWbGhPWDBOZlFsSlRYek13TUhnek1EQXVhbkJufDVjY2ZiNmZjNTcwZGZjYzkwOGNkNmE5MDRiZWFkOWNmNzkzOGQxZmM1MzQyNTkzMGVmZmVjNzVlMDY2YzRlNDM
25762799 Hydraulic and Pneumatic Valves

SMC SMC

VXN22DS

Description

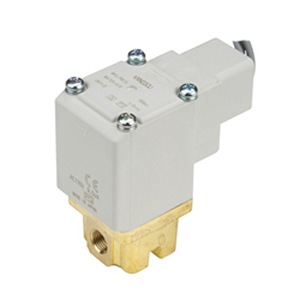

VXN22DS VALVE, MEDIA (SMARTCATALOG)

Valve; Solenoid; 1/4" FNPT Port; 2 Port - 2 Way; 2 Position; Hydraulic - Pneumatic; 24 VDC; Solenoid/Spring Return; 435 PSI; Air -14 To 140 Deg F/Water 34 To 140 Deg F; Buna-N Seal; Brass

Part #

VXN22DS

BDI #
25762799

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Details

62.6755 USD 2099-12-31 http://schema.org/NewCondition http://schema.org/InStock Your Price $ 62.68 / each BDIExpress
QTY

Inventory

Total: 10

Category
Hydraulic and Pneumatic Valves
Brand
SMC
Manufacturer Name
SMC
Minimum Buy Quantity
1
Weight / gram
440
Product Group - BDI
F02234
Valve Type
Poppet | Solenoid
Port Type
1/4" FNPT
Number of Ports/Way
2 Port | 2 Way
Number of Positions
2 Position
Actuation
Solenoid | Spring Return
Voltage
24 VDC
Media
Hydraulic | Pneumatic
Maximum Pressure
435 PSI
Operating Pressure Range
0 To 435 PSI
Operating Temperature Range
Air -14 To 140 Deg F | Water 34 To 140 Deg F
Seal Type
Buna-N
Body Material
Brass
Inch - Metric
Inch
Other Features
0.21 Cv Factor Air - Water | For Air/Water | Normally Closed
Category - BDI
Hydraulic and Pneumatic Valve
Harmonized Tariff Code
8481.20.00.60
Noun
Valve
Keyword String
Poppet Solenoid
Manufacturer URL
https://www.smcworld.com
Weight / LBS
0.99208
Long Description
Valve; Solenoid; 1/4" FNPT Port; 2 Port - 2 Way; 2 Position; Hydraulic - Pneumatic; 24 VDC; Solenoid/Spring Return; 435 PSI; Air -14 To 140 Deg F/Water 34 To 140 Deg F; Buna-N Seal; Brass
Overall Height
2.835 Inch | 72 Millimeter
Overall Length
2.835 Inch | 72 Millimeter
Overall Width
1.378 Inch | 35 Millimeter
