VXZ262LZ2A https://www.bdiexpress.com/medias/MFRSMCVALVEX-25642943-300x300.jpg?context=bWFzdGVyfHJvb3R8OTc2OXxpbWFnZS9qcGVnfGFHVm1MMmhqWmk4eE1Ea3hNREU1T1RFeE9Ua3dNaTlOUmxKVFRVTldRVXhXUlZoZk1qVTJOREk1TkROZk16QXdlRE13TUM1cWNHY3w5OGQ3YjE4NmZmN2U5MTdjMmZhY2JlZTJjYzJkM2JmMzc5Mzk4ZTU4MTBkZTQ0NjE4NTIwNmFhMDhkYjE4NjIw
25642943 Hydraulic and Pneumatic Valves

SMC SMC

VXZ262LZ2A

Description

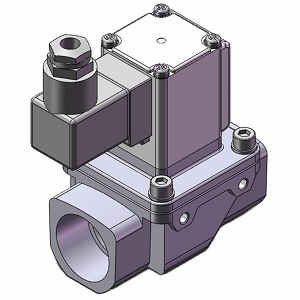

VXZ262LZ2A, PILOT OP 2 PORT SOLENOID VALVE, (N.C.) (SMARTCATALOG)

Solenoid Valve; 1" RC; 2 Port | 2 Way; 2 Position; 24 VDC; Hydraulic; Solenoid - Air Pilot | Spring Return; 145 PSI; 34 To 140 Deg F; Buna-N Seal; Stainless Steel

Part #

VXZ262LZ2A

BDI #
25642943

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Details

417.62 USD 2099-12-31 http://schema.org/NewCondition http://schema.org/InStock Your Price $ 417.62 / each BDIExpress
QTY

Inventory

Total: 1

Category
Hydraulic and Pneumatic Valves
Brand
SMC
Manufacturer Name
SMC
Minimum Buy Quantity
1
Weight / gram
1330
Product Group - BDI
F02234
Valve Type
Solenoid
Port Type
1" RC
Number of Ports/Way
2 Port | 2 Way
Number of Positions
2 Position
Actuation
Solenoid - Air Pilot | Spring Return
Voltage
24 VDC
Media
Hydraulic
Maximum Pressure
145 PSI
Operating Pressure Range
0 To 145 PSI
Operating Temperature Range
34 To 140 Deg F
Seal Type
Buna-N
Body Material
Stainless Steel
Inch - Metric
Inch
Other Features
10.2 Cv Factor | 25MM Orifice Size | Water Fluid | Zero Differential Pressure | Normally Closed | DIN Terminal With Surge Voltage Suppressor | Class B | With Light
Category - BDI
Hydraulic and Pneumatic Valve
Harmonized Tariff Code
8481.20.00.20
Noun
Valve
Keyword String
Solenoid
Manufacturer URL
https://www.smcworld.com
Weight / LBS
2.932
Long Description
Solenoid Valve; 1" RC; 2 Port | 2 Way; 2 Position; 24 VDC; Hydraulic; Solenoid - Air Pilot | Spring Return; 145 PSI; 34 To 140 Deg F; Buna-N Seal; Stainless Steel
Overall Height
5.315 Inch | 135 Millimeter
Overall Width
2.598 Inch | 66 Millimeter
Overall Length
4.528 Inch | 115 Millimeter
